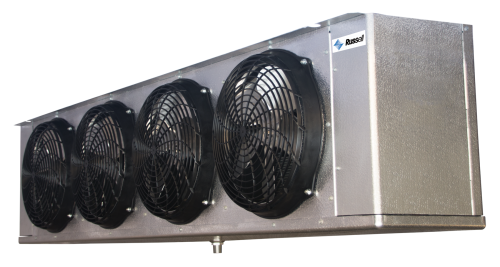

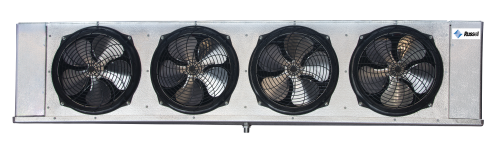

Russell All-Temps were the original low profile unit coolers that established the industry standard as being the all-purpose design for walk-in coolers, freezers and other applications. We’ve taken these unit coolers to the next level with the release of the Next-Gen All-Temp models. The units feature a new fan guard design and deep draw venturi to achieve optimal airflow and easy access for serviceability. These models can be used with multiple refrigerants, and are available in air, electric and hot gas defrost configurations.

Standard Features

• Dual Speed EC Motors (Dual Speed EC Motors are compliant with California Title 24 Regulations)
• Embossed aluminum housing is lightweight and durable
• Fan sections are baffled to prevent short cycling of air

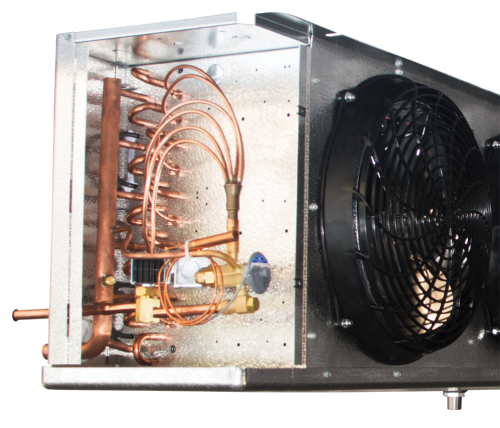

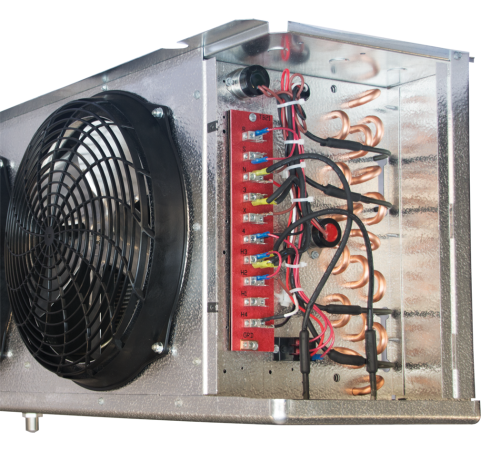

• End panels slide out for easy serviceability from the front or ends of the unit
• Mounts flush to the ceiling to maximize headroom and space
• UL/cUL certified for use with multiple refrigerants
• NSF approved for use in food preparation areas
• Single fan through six fan models
• Capacities range from 2,700 to 45,900 BTUH

Next-Gen All-Temp Submittal Form

SAMPLE OF OPTIONS


• Coated aluminum fins

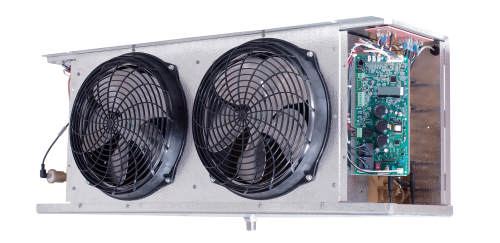

• EcoNet® Enabled Unit Cooler controller

• EcoNet Command Center
• Coated housing
• Adjustable termination/fan delay control
• Insulated drain pan

NEXT-GEN ALL-TEMP UNIT COOLER PRODUCT BROCHURE
Next-Gen All Temp Revit (.rfa) files
Next-Gen All-Temp Installation and Operations Manual
